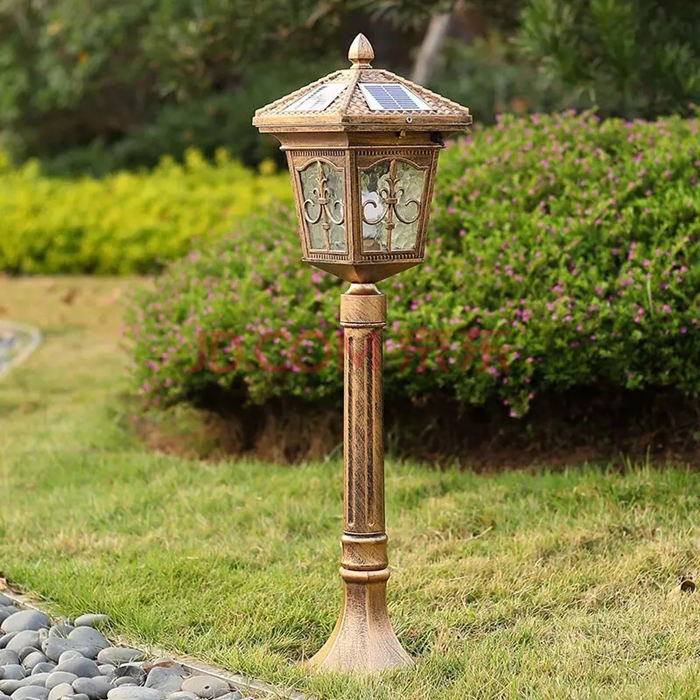

Solar garden light is a kind of outdoor lighting lamps, which usually refers to outdoor road lighting lamps below 6 meters. Its main components are composed of five parts: light source, lamp, lamp pole, flange and foundation embedded parts. Because garden lamp has the characteristics of diversity, aesthetics and decorative environment, it is also called landscape garden lamp. It is mainly used for outdoor lighting in urban slow lanes, narrow lanes, residential areas, scenic spots, parks, squares and other public places, which can prolong people's outdoor activities and improve the safety of property.

Wiring mode and precautions of solar garden light:

1. The brown line (+) at the power output end is connected to the red line at the input end of the lamp cap, and the blue line (-) is connected to the black line at the input end of the lamp cap;

2. The brown wire at the power input end is a live wire, and a fuse shall be added in the front section. The yellow green wire is grounded, and the blue wire is a zero wire;

3. 10kV surge protector shall be added at the front end of the power supply for lightning prone areas.

Precautions during installation of solar garden light:

1. First, complete the installation of the ground cage (when installing the ground cage, combined with the direction of the lamp pole and lamp cap, and the position of the lamp pole access door);

2. Fix the lamp cap to the lamp pole, pay attention to the outlet of the lamp cap can not be broken and fastened well. When the concrete of the ground cage is dry, erect and fix the lamp pole, level it, and the top waterproof cover must be covered;

3. In the process of fixing the lamp cap Shanghai road lamp manufacturer to the lamp pole, it is not recommended to tighten the screws at the price of Anhui traffic sign pole at one time, but first screw the three screws to the top of the screw and clamp it two away from the lamp pole o the position of the three threads, and then adjust the fastening degree of the three screws and the lamp pole in turn until the lamp cap is stably and firmly fixed on the lamp pole;

4. It is recommended that the number of lamps installed in a single way should not exceed 50 lamp caps;

5. Lamps shall not be installed in the ponding area.
