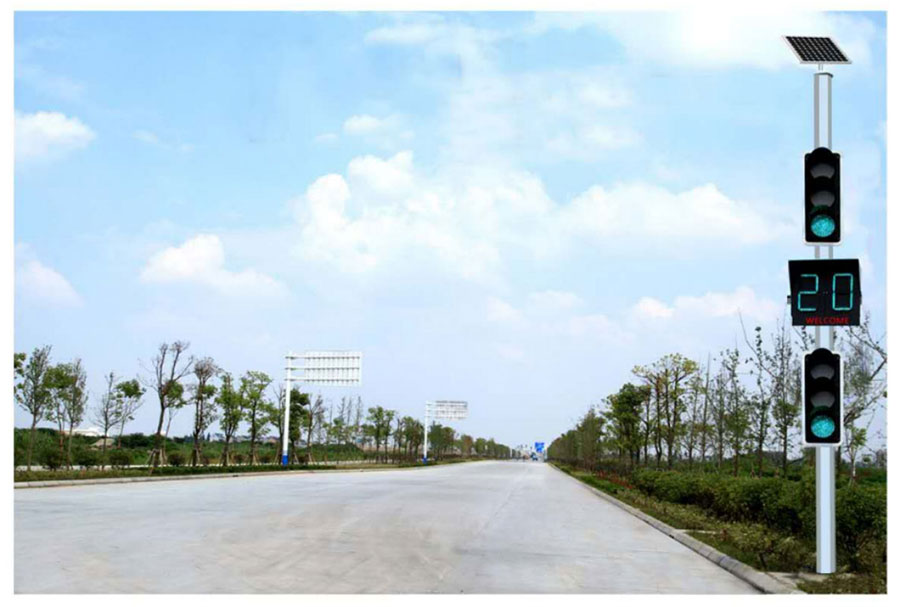

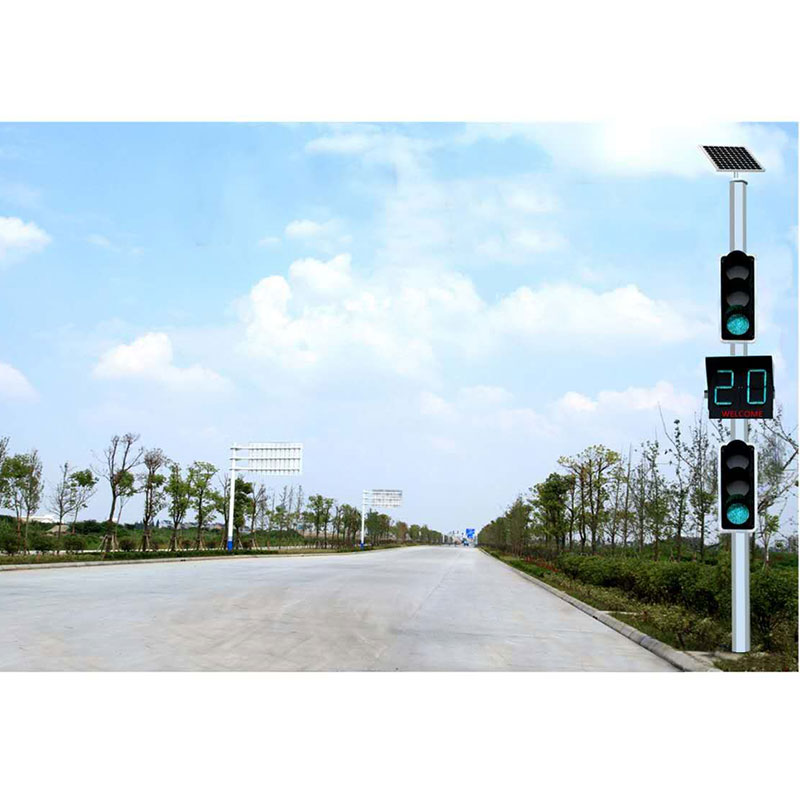

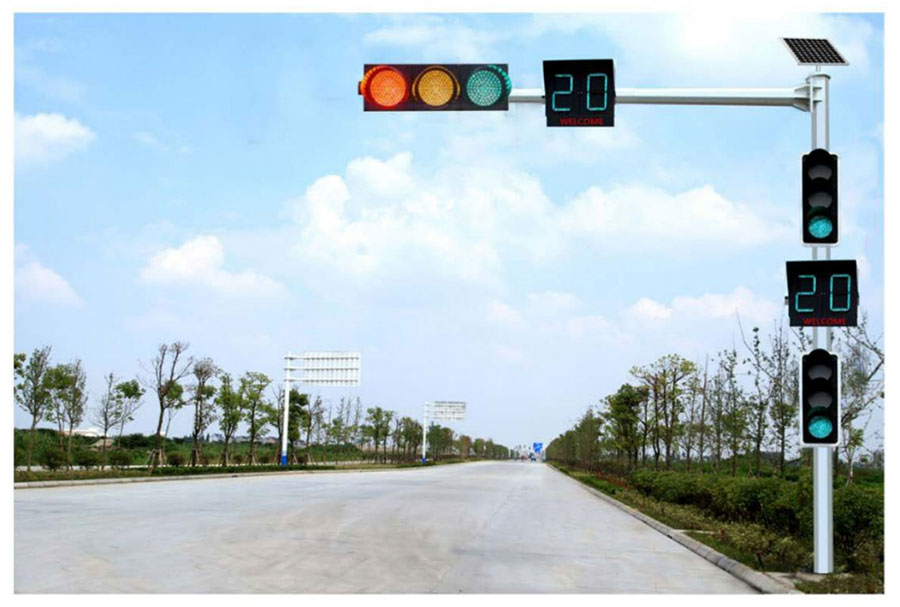

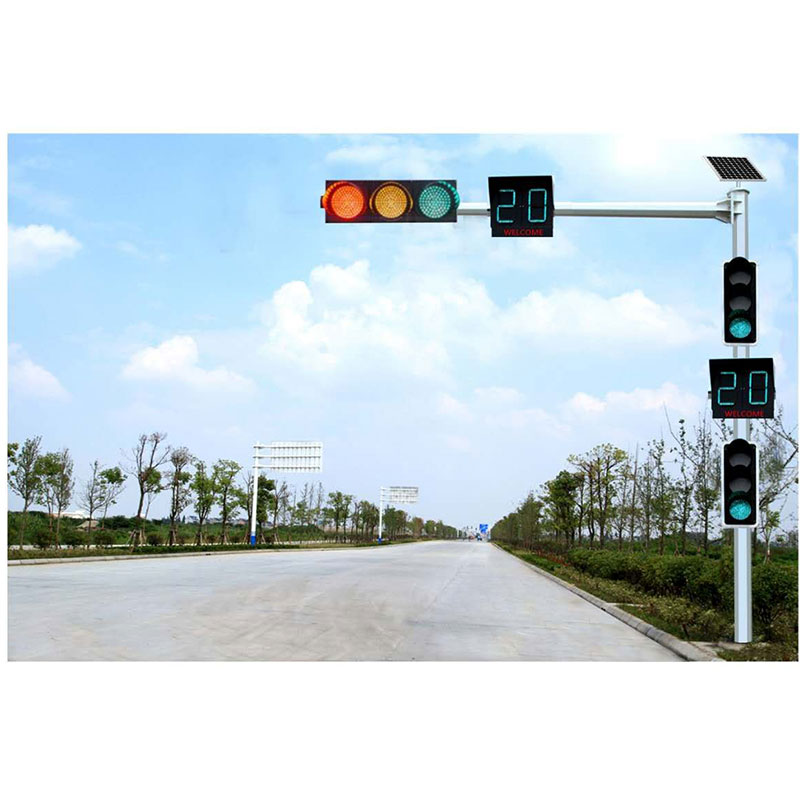

Products Effect Display

400 Model Full Screen Traffic Light：
1.Product Photo

2.Product Feature

★ Low Power Dissipation
★ Brand New Design
★ Wide Visual Angle
★ Long Operating Life
★ Water Proof
★ Unique Optics System
★ Long Visible Distance
★ Comply GB/14887-2011 and International Standard

3.Technical Parameter：

★ RED: Single Brightness: 3500~5000mcd, Wave Length: 625±5nm, UDLR Visual Angle: 30°, Power:≤10W
★ YELLOW: Single Brightness: 4000~6000mcd, Wave Length:590±5nm, UDLR Visual Angle:30°, Power:≤10W
★ GREEN: Single Brightness:3500~5000mcd, Wave Length:625±5nm,UDLR Visual Angle:30°, Power:≤10W
★ Ambient Temperature：-40℃~+70℃
★ Working Voltage：AC176V-265V，60HZ/50HZ
★ Light Box Material：PC
★ IP Grade：IP53
★ Visual Distance≥300m

Two Position Three Color Countdown Timer：
1.Product Photo：600*800

2.Product Feature：

★ Super Thin Design with Low Weight
★ Brand New Structure Design
★Multiple Sealing, Water Proof, Dust Proof, Endure Vibrating, Low Power Consumption, Long Working Life.
★ Core Circuit is controlled by SCM. Adopt Independent Clock Watch Dog and Hardware Anti-Interference system to Make Sure Timer more Reliable.
★ With Multiple Install Method to Suit Different Installation Requirements.
★ It can be directly connected power from traffic light.
★ LED Module with Digital Display
★ Unique Optics System with Wide Visual Angle, Long Visible Distance. Display Part adopt high bright Luminous Diode.
★ Comply GAT508-2004 and International Standard

3.Technical Parameter

★ RED Timer: Single Brightness: 3500~5000mcd, Wave Length: 625±5nm, UDLR Visual Angle: 30°, Power:≤12W
★ Yellow Timer: Single Brightness: 4000-6000mcd, Wave Length: 590±5nm, UDLR Visual Angle: 30°, Power:≤12W
★ Green Timer: Single Brightness: 7000-10000mcd, Wave Length: 505±5nm, UDLR Visual Angle: 30°, Power:≤12W
★ Ambient Temperature：-40℃~+70℃
★ Working Voltage：AC84-265V
★Light Box Material：PC
★ IP Grade：IP53
★ Visual Distance≥300m

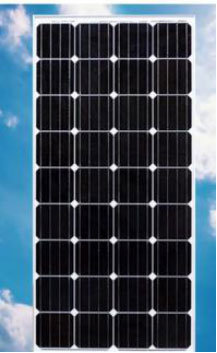

Solar Panel
1.Product Photo：

2.Technical Parameter：

（1）Solar Panel Power Rate： 18V/150W。
（2）High Efficiency Polycrystalline Silicon Panel Complying National Standard.
（3）Solar Panel Exchange Rate≥18%。
（4）Using Life is over 25 Years.
（5）It can be used in various harsh weather.

Driver

1.Product Feature：

（1）Spec：12V/10A/100W
（2）CC+CV Model Output
（3）Metal Shell Earthing Design
（4）Build-In Active PFC Function
（5）IP67 Protection
（6）Using Life>50000 Hours

LiFePO4 Battery
1.Product Photo：

2.Basic Data：

Power Rate：12V100Ah
Material：LiFePO4
Using Life：Designed life ≥5 years

3.Technical Advantage：

1．Easy Connected Trail Structure. It can be installed underground to avoid polar erosion.
2．High Sn Rare Earth Alloy to increase polar plate anti erosion. High output and charging efficiency.
3. Apply special imported lead plaster, low self-discharging rate, Endure deep discharge and strong power recover ability.
4．Applying high temperature and high humid curing process, stable lead plaster and PAM interface structure to improve battery consistency.

4. Technical Feature

1. Battery is tested by required method. 10h volume under the first Charge-Discharge Circle shall no less than 0.95c10, fifth circle shall reach C10, Discharge end voltage shall be 1.8V/Single Piece.
2．Polarity using interconnecting standard 1.5mPVC copper soft line with high conducting rate and anti erosion to realize underground installation.
3．Battery cell, cover, seal agent apply ABS plastic, anti acid, anti oil, fire resist, working pressure≥50kpa
4. Battery apply total seal structure. No acid fog spills during normal work.
5. Electrode is marked to easy connection. Polar plate thickness well consider using life.
6．Safety valve has pressure constant, filtering acid mist and fire resistant function. Automatic open and close during working. Open valve pressure is 30KPA-40KPA, Close valve pressure is ≥15KPa.
7. Self discharging rate is less than 3%. After 90 days storage, power shall be remain over 91%.
8. Battery can endure over charging and long over charging life. Continuously Charging with 0.3I10 for 16 hours, there will be no out of shape and seepage.
9. Working temperature: 25℃-70℃ to meet different out door environment.
10. Battery circle durable ability was tested according to GB/T22473-2008 Clause 7.8.
11. Battery does not have antimony and cadmium element to ensure environmental friendly and safety.

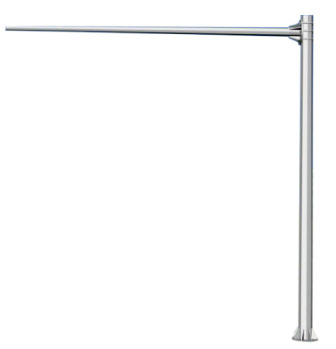

L Model Pole
1.Product Photo：

2.Technical Data：

（1）L-Shaped pole: welding connection smooth with no rag. Hot galvanized anti-erosion process, finish with plastic spraying.Galvanized coating shall be no less than 80 micron, Plastic coating shall be no less than 100 micron.
（2）Size：Height 6.8m，Arm length 6m，vertical pole thickness 5-6mm，arm thickness 4-5mm.
（3）Colour：optional
（4）Standard：Comply National Check and acceptance regulations.

Single Pole
1.Product Photo：

2.Technical Parameter：

(1)Single pole: welding connection smooth with no rag. Hot galvanized anti-erosion process, finish with plastic spraying.Galvanized coating shall be no less than 80 micron, Plastic coating shall be no less than 100 micron.
(2)Size：Height 6m， pole thickness 4-5mm.
(3) Colour：optional
(4) Standard：Comply National Check and acceptance regulations.

Solar Panel Support：
1.Product Photo：

2.Technical Parameter：

(1)welding connection smooth with no rag. Hot galvanized anti-erosion process, finish with plastic spraying.Galvanized coating shall be no less than 80 micron, Plastic coating shall be no less than 100 micron.
(2) Colour：optional
(3) Standard：Comply National Check and acceptance regulations.

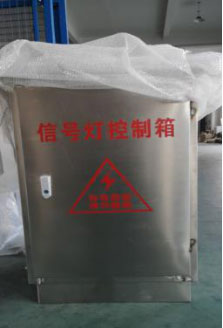

Stainless Control Box：
1.Product Photo：

2.Technical Parameter：

 (1）Box Material: Stainless steel
（2）Endure high temperature,shock resistance.
（3）All in one design, fire resistant, rain proof, high strength and pretty outlook.
（4）Ambient Temperature： -40℃～+55℃
（5）Ambient Requirement： Suitable for inside box installation. Not Suitable for fire, explosive hazard, dirty, chemical erosion and vibrating area.

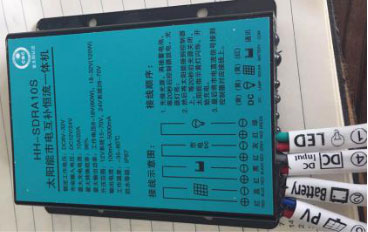

Electrical Complementary Controller ：
1.Product Photo：

2.Technical Parameter：

★CC output, current adjustable with precision 10mA. Minimum Current 25MA. Three phase time and current adjustment. Current 0-100% adjustment.
★PWM Charging. High charging rate.
★Design parameter and operation status readable.
★ Apply 12V and 24V Li Battery and Gel Battery.
★Over Charging protection, Low voltage and low voltage recover can be set.
★IP68 Aluminium shell with IP 68 protection grade.
★It can set municipal electric switch voltage
