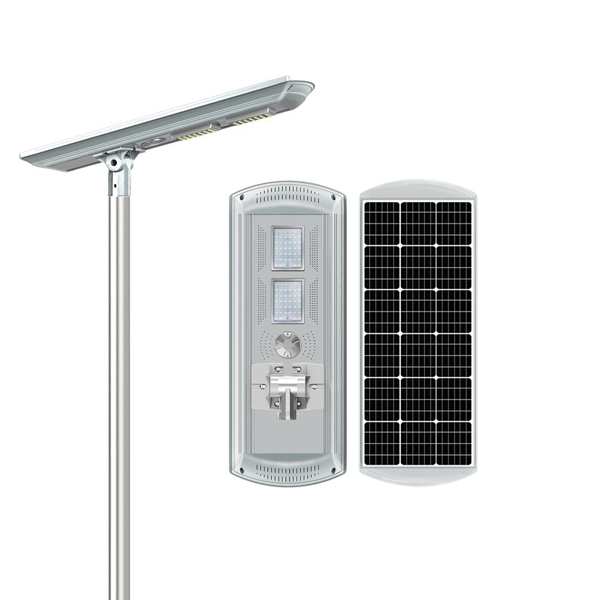

Z88 80W SMD Specification

Detailed Description

1.1 Technical Parameters

Model	XT1340SELD80-D5

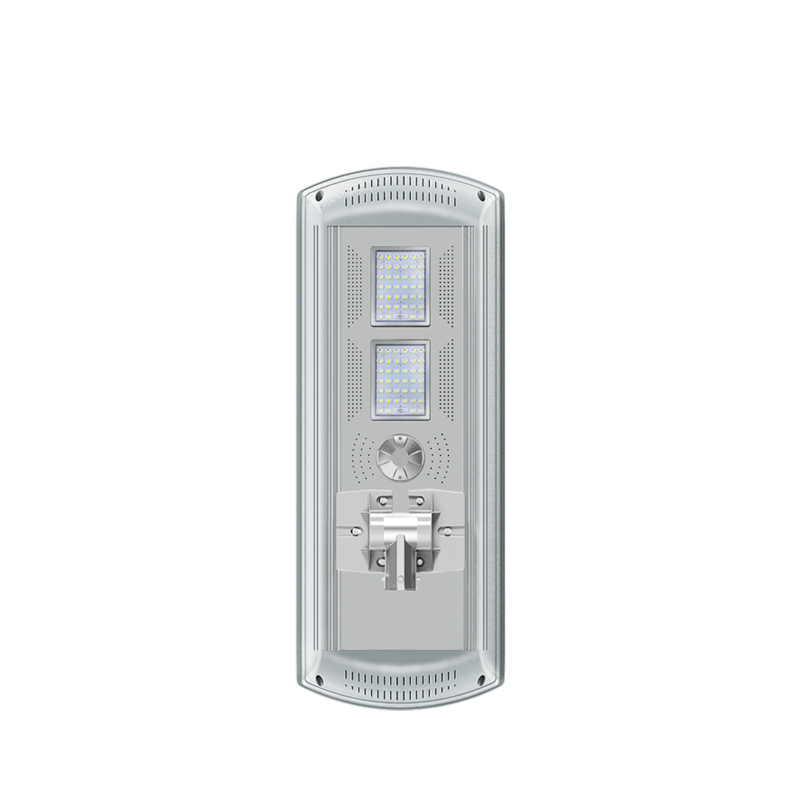

LED Quantity	40 PCS 5050
Module Quantity (pcs)	2
Power	80W

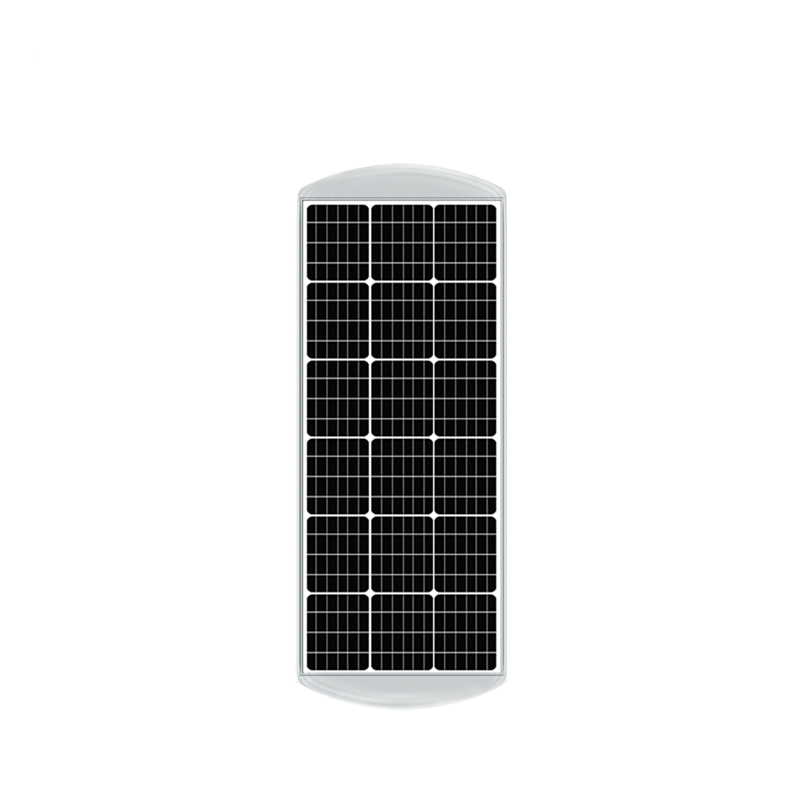

Solar Panel	Monocrystalline Silicon of 36V/100W

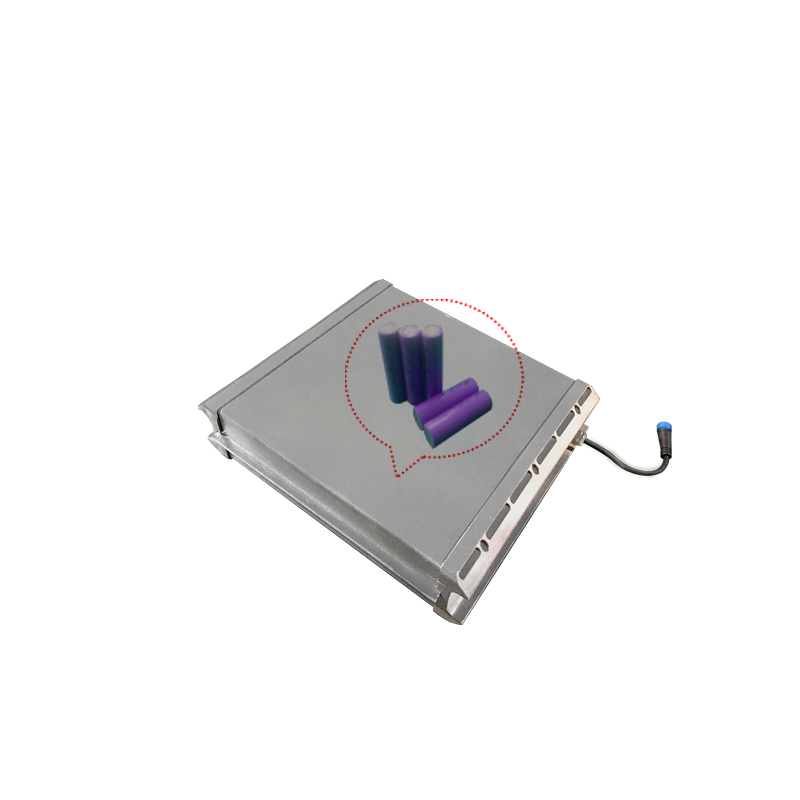

Battery	Grade A Lithium Ion Battery of model 32650 25Ah/24V
Adjustable Angle of Module (±15°)	Yes
Contrtol Mode	Light Control+Time Control
Working time under full power	12h
Working time under smart power control	84h
Charging time (1,000W/m2)	6h
On-off threshold level	on≦8LUX, OFF≧10LUX
Material for secondary lighting distribution	PC
Beam Angle	C0~180 150°/ T90~270 80°
Protection Grade	IP65
Photoelectric Parameter
Color Temperature (K)	3,000-6,500K
CRI (Ra)	70
Lumens (lm)	9,000-10,000lm
Intelligent Mode	Yes
Working under rainy days	7 to 10 days
Package
Net Weight	23kg±5%
Gross Weight	48kg±5%(2pcs/box)
Product Dimension	1,34052586mm±5%
Package Dimension	1,360260580mm±5%
Quantity in 20/40 Feet Container (including accessories)	192PCS/448 PCS
Environmental Temperature
Discharging Temperature	-20～60
Charging Temperature	-20～60
Storage Temperature	0～45
Installation
Diameter of Pole	Ø89mm
Screw Fixation	YES
Wind resistance level(km/h)	209
Installation Height (m)	9-10
Installation Distance(m)	27-30
Irradiation Area(m2):	300

1.2 Product Dimension (mm)

Z88 120W SMD Specification(图1) 1.3 Distribution Diagram

Z88 120W SMD Specification(图2) 1.4 Light Pole Sketch

Z88 120W SMD Specification(图3) 1.5 120W Illumination Simulation-12m

Z88 120W SMD Specification(图4)

2 Package
2.1 Package Sketch

Z88 120W SMD Specification(图5) 2.2 Package List
