C95 15W SMD Specification

Detailed Description

1.1 Technical Parameters

Model：	XT595SETY15-D5
LED Quantity：	24 Pcs 5050
Module Quantity (pcs)：	1
Power：	15W
Solar Panel：	Monocrystalline Silicon 18V/22W
Battery：	Grade A Lithium Ion Battery 10Ah/12V
Adjustable Angle of Module(±10°)：	Yes
Control Mode：	Light Control+Time Control
Working time under full power：	12h
Working time under intelligent power：	84h
Charging time(1000W/m2)	6h
On-off threshold level：	on≦8LUX, OFF≧10LUX
Secondary lighting distribution：	PC
Beam Angle：	C0~180 140°/ T90~270 70°
Protection Grade：	IP65
Photoelectric Parameter：
Color Temperature(K):	3,000-6,500K
CRI(Ra):	70
Lumens(lm):	1,800-2,100lm
Intelligent Mode:	Yes
Working under rainy day:	7-10 Days
Package:
Net Weight (kg):	8.0kg
Gross Weight (kg):	18.0kg (2pcs/box)
Product Dimension(mm):	595×490×95mm±5%
Package Dimension(mm)：	660×285×550mm±5%
Quantity in 20/40 Feet Container	420/1,152PCS
Environmental Temperature：
Discharging Temperature (℃)：	-20～60
Charging Temperature (℃)：	-20～60
Storage Temperature (℃)：	0～45
Installing Parameter：
Diameter of Pole：	Ø68mm
Screw Fixation：	Yes
Wind resistance level (km/h)：	209
Installation Height (m)：	3-4
Installation Distance (m)：	9-12
Irradiation Area(m2)：	48

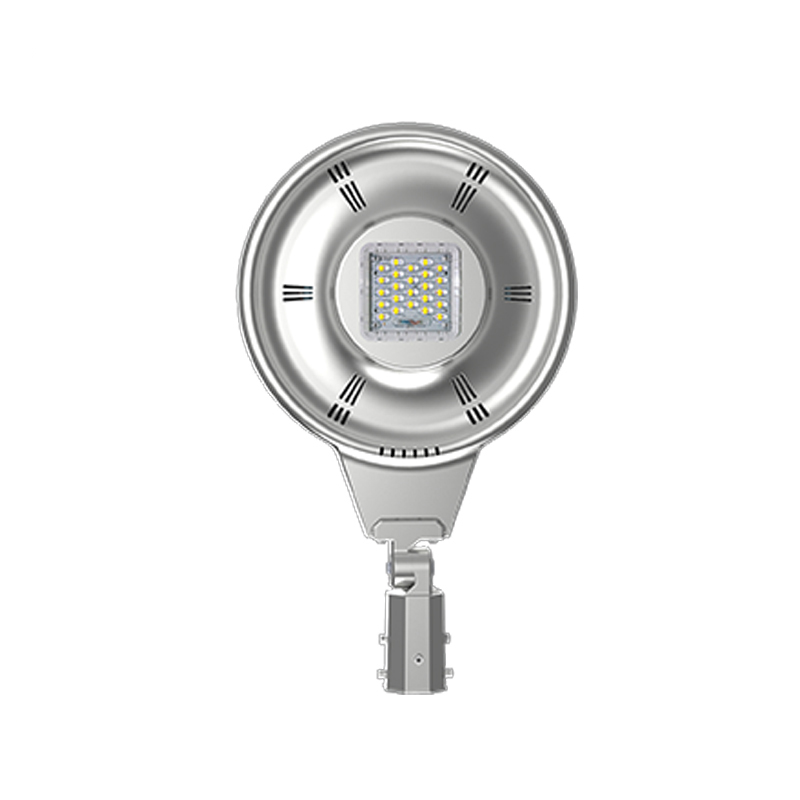

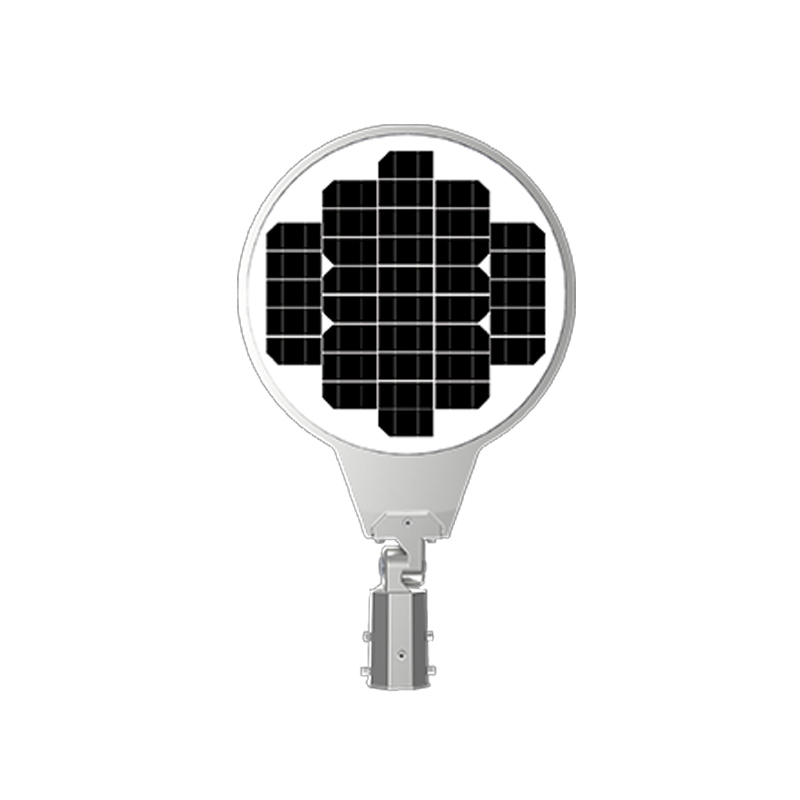

1.2 Product Dimension (mm)

C95 15W SMD Specification(图1) 1.3 Distribution Diagram

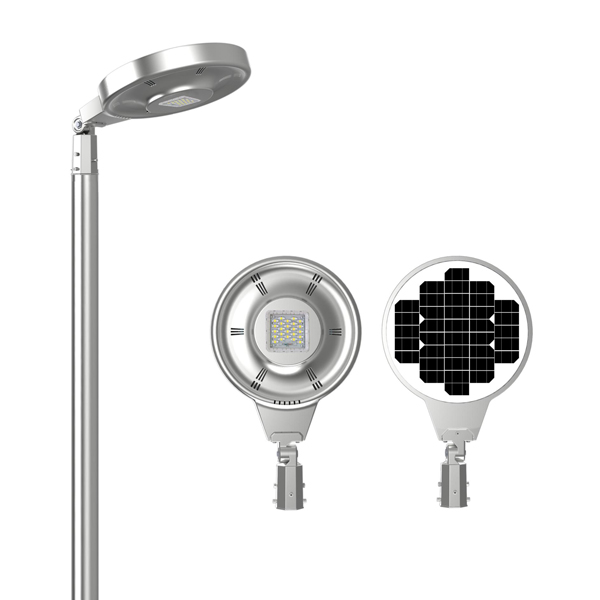

Z88 120W SMD Specification(图2) 1.4 Light Pole Sketch

Z88 120W SMD Specification(图3) 1.5 120W Illumination Simulation-12m

Z88 120W SMD Specification(图4)

2 Package

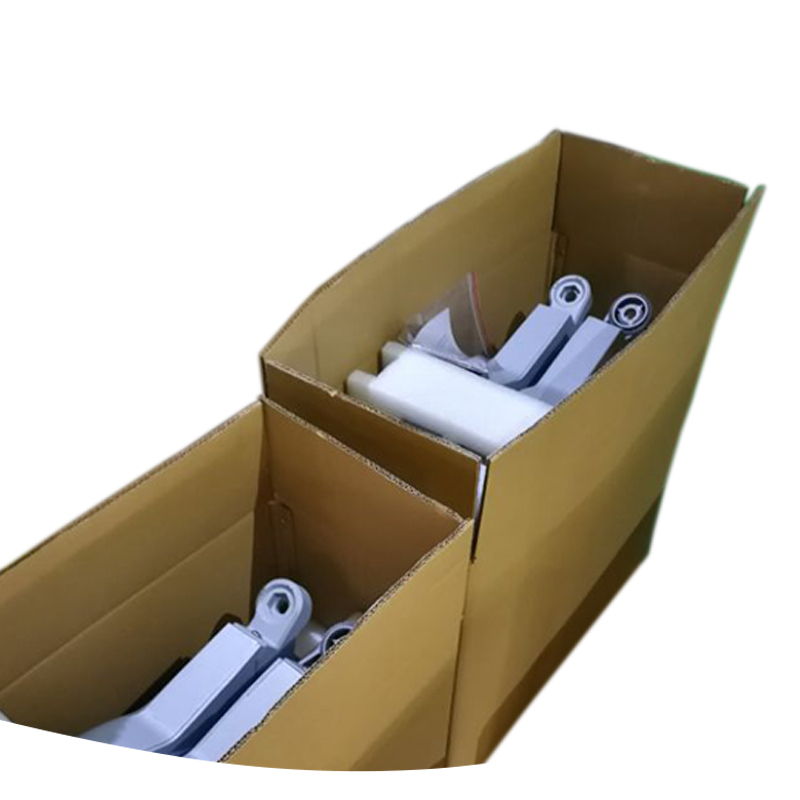

2.1 Package Sketch

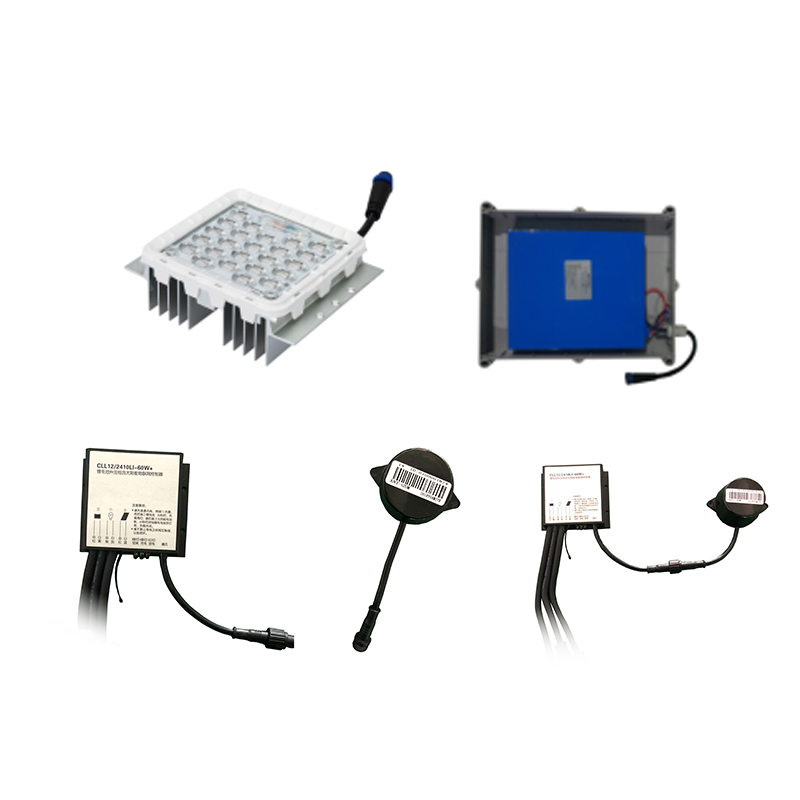

C95 15W SMD Specification(图5) 2.2 Package List
