25W led light specification date

Detailed Description

[Specification]

25W LED solar street light

Application

- [Road lighting (urban roads, streets, highways, etc.)

- District lighting (municipal square, commercial area, parking lot, etc)

Detailed：

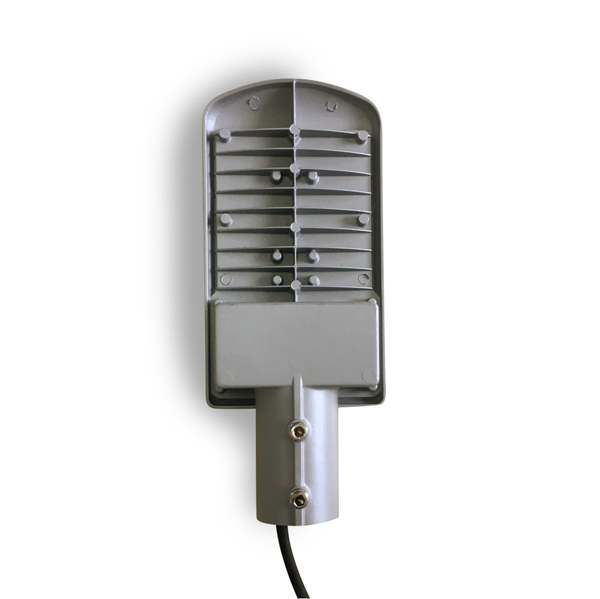

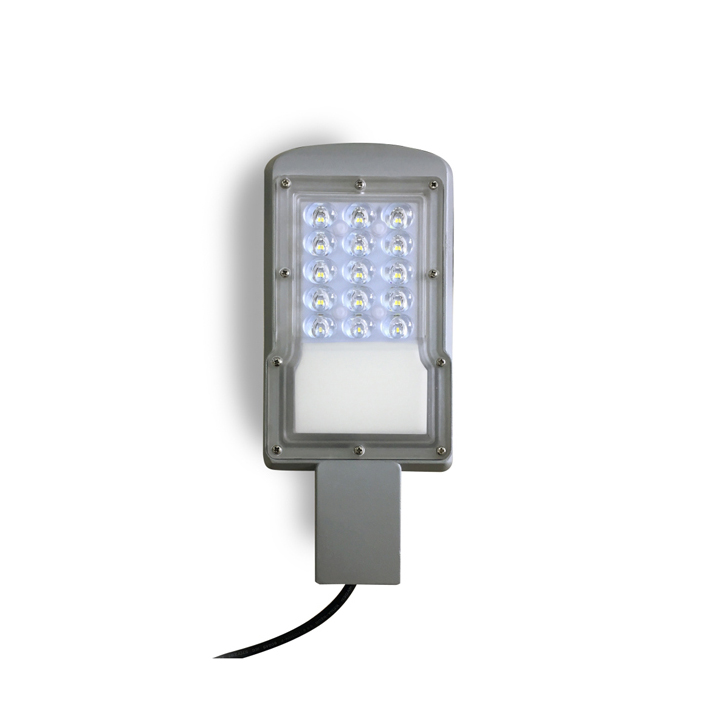

25W led light specification date(图1)

Product Parameter
Model	XT261LD25
LED Quantity	24pcs3030
Module Quantity( pcs）	1
Power：（W）	25W
Out cable length Wire length	0.15-0.2m
Input voltage range （V）	AC 100-277
Frequency (Hz)	50/60
Power Efficiency	90%
Power factor	0.95
Secondary light distribution material:	PC
Lamp color	Grey
Glare threshold (T)	≦10
Protection against electric shock	I class
Electrical insulation rating	CLASS II
Beam angle（°）	C0~180 140°/ T90~270 70°
Protection level	IP65
Photoelectric Parameter：
Color Temperature(K)：	6000-6500
CRI(Ra)：	70
Lumens(lm)：	2500-2750
Package：
Net Weight((kg)：	0.5kg±5%
Gross Weight (kg)：	6kg±5%(10pcs/box)
Product Dimension (mm)：	261×110×56mm±5%
Package Dimension(mm)：	340×450×120mm±5%
Quantity in 20/40 Feet Container	5760/14040PCS（pallet）
Environmental Temperature：
Working Temperature (℃)：	-40～60
Storage Temperature（℃）：	0～45
Installing Parameter：
Diameter of Pole：	Ø35-40mm
Wind resistance level(km/h)：	209
Installation design (m)	3-4
Installation spacing (m)	12-16
Irradiation area (m2)	64
