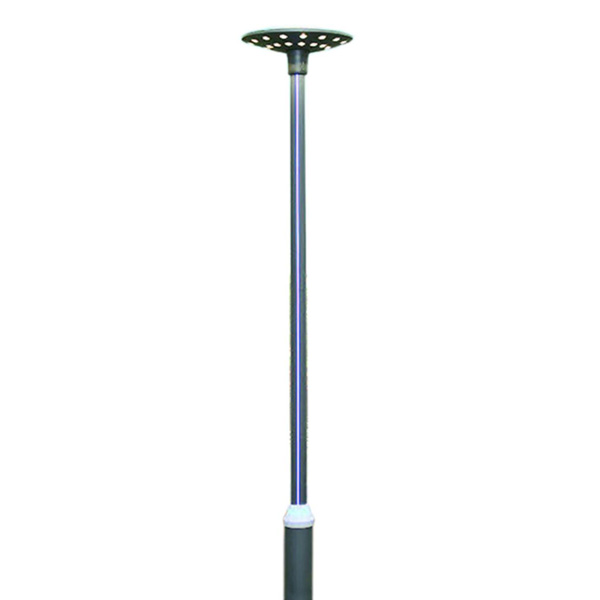

ELECTIRC LED LANDSCAPE LIGHT
| Model | XT350LD10-D | XT350LD20-D XT420LD30-D | XT420LD40-D | ||||
| Power | 10W | 20W 30W | 40W | ||||
| Power factor | ≥0.70 | ≥0.70 ≥0.70 | ≥0.70 | ||||
| Input voltage range/frequency | AC85~265V/50~60Hz | AC85-265V/50-60Hz AC85~265V/50~60Hz | AC85-265V/50-60Hz | ||||
| Luminous flux | 800 lm | 1,600 lm 2,400lm | 3,200lm | ||||
| Type of light source | SMD | SMD SMD | SMD | ||||
| Quality of Light source | 10 | 20 30 | 40 | ||||
| Color temperature | 5500K±200K | 5500K±200K 5500K±200K | 5500K±200K | ||||
| CRI | 70 | 70 70 | 70 | ||||
| Luminous efficiency | 140 lm/W | 140 lm/W 140lm/w | 140 lm/W | ||||
| Transparent materials | Toughened glass | Toughened glass Toughened glass | Toughened glass | ||||
| Emitting angle | C0~180 120° / T90~270 90° | C0~180 120° / T90~270 9 C0~180 120° / T90~270 90° | C0~180 120° / T90~270 90° | ||||
| Chip specifications | 45mil | 45mil 45mil | 45mil | ||||
| Lamp color/Coloe card | Sliver Gray/RAL 7001 | Sliver Gray/RAL 7001 Sliver Gray/RAL 7001 | Sliver Gray/RAL 7001 | ||||
| Protection grade | IP 65 | IP 65 IP 65 | IP 65 | ||||
| Environment temperature | ‘-40~+55℃ | ‘-40~+55℃ ’-40~+55℃ | ‘-40~+55℃ | ||||
| Quality of Module | 1 | 1 1 | 1 | ||||
| Mounted diameter | Ф35mm | Ф35mm Ф35mm | Ф35mm | ||||
| Lantern of wiring | 60245 IEC57 3×1mm2 length1.5m | 60245 IEC57 3×1mm2 length1.5m | 60245 IEC57 3×1mm2 leng | ||||
