80W LED

Detailed Description

[Specification]

80W LED solar street light

Application

- [Road lighting (urban roads, streets, highways, etc.)

- District lighting (municipal square, commercial area, parking lot, etc)

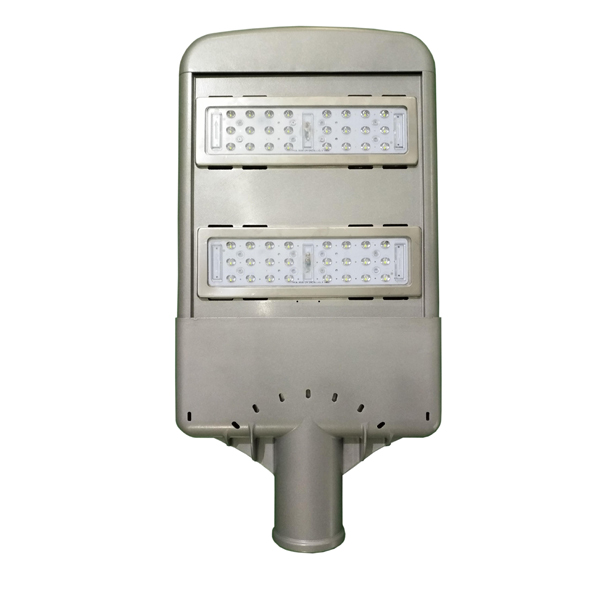

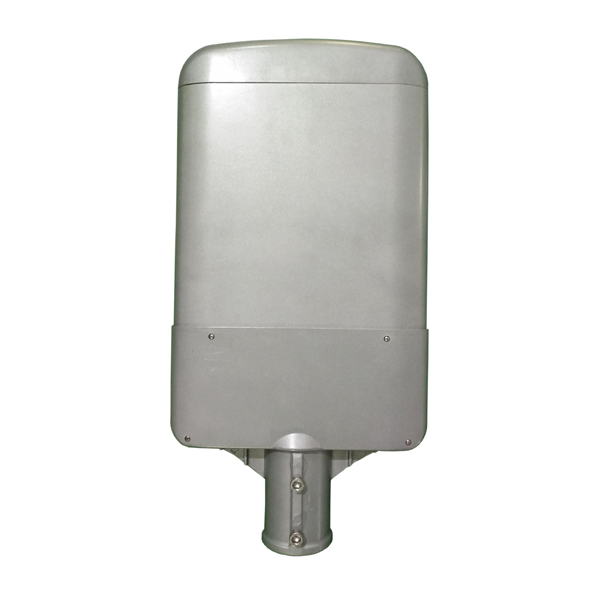

Product appearance view

80W LED(图1)

Installation Diameter

80W LED(图2)

Detailed：

80W LED(图3)

Product Parameter
Model	XT597LD80
LED Quantity	48pcs 3535
Module Quantity( pcs）	2
Power：（W）	80W
Light source brand	CREE
Power brand	Mean well
Base angle	0°
Input voltage range (V)	AC 200-240
Frequency (Hz)	50/60
Power Efficiency	90%
Power factor	0.95
Secondary light distribution material:	PC
Lamp color	Silver gray
Glare threshold (T)	≦10
Protection against electric shock	I class
Electrical insulation rating	CLASS II
Beam angle（°）	C0~180 140°/ T90~270 70°
Protection level	IP65
Photoelectric Parameter：
Color Temperature(K)：	6000-6500
CRI(Ra)：	70
Lumens(lm)：	8800-9600
Package：
Net Weight((kg)：	7.3kg±5%
Gross Weight (kg)：	8.5kg±5%(1pcs/box)
Product Dimension (mm)：	597×300×76mm±5%
Package Dimension(mm)：	634×349×138mm±5%
Quantity in 20/40 Feet Container	756/1728PCS pallets
Environmental Temperature
Working Temperature (℃)：	-40～60
Storage Temperature (℃)：	0～45
Installing Parameter：
Diameter of Pole：	Ø60mm
Screw Fixation：	209
Wind resistance level(km/h)：	7-8
Installation Height (m)：	21-24
Installation Distance（m)：	192
