[Specification]
60W LED solar street light
Application
- [Road lighting (urban roads, streets, highways, etc.)
- District lighting (municipal square, commercial area, parking lot, etc)

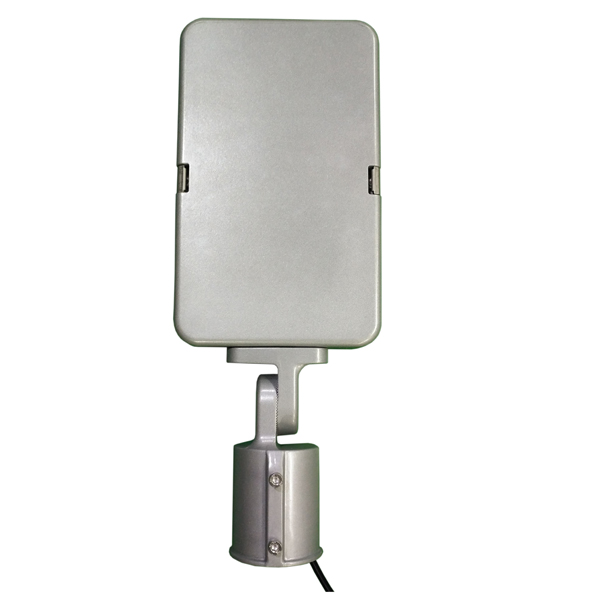

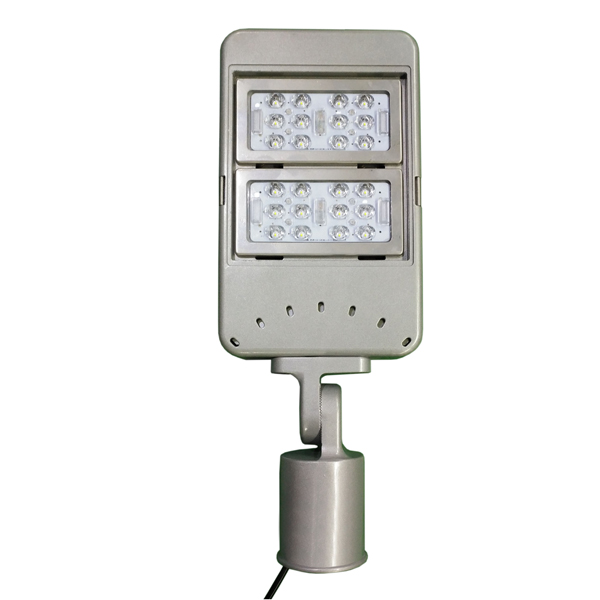

Product appearance view
Installation Diameter
Detailed：
| Product Parameter | |
| Model | XT540LD60 |
LED Quantity | 24 pcs3535 |
Module Quantity( pcs） | 2 |
Power：（W） | 60W |
Light source brand | CREE |
Power brand
| Mean well |
Base angle | 0-90° |
Input voltage range (V) | AC 200-240 |
Frequency (Hz) | 50/60 |
Power Efficiency | 90% |
Power factor | 0.95 |
Secondary light distribution material: | PC |
Lamp color | Silver gray |
Glare threshold (T) | ≦10 |
Protection against electric shock | I class |
Electrical insulation rating | CLASS II |
Beam angle（°） | C0~180 140°/ T90~270 70° |
Protection level | IP65 |
Photoelectric Parameter： | |
| Color Temperature(K)： | 6000-6500 |
| CRI(Ra)： | 70 |
| Lumens(lm)： | 6600-7200 |
Package： | |
| Net Weight((kg)： | 3.5kg±5% |
| Gross Weight (kg)： | 4.5kg±5%(1pcs/box) |
| Product Dimension (mm)： | 540×205×73mm±5% |
| Package Dimension(mm)： | 589×249×133mm±5% |
| Quantity in 20/40 Feet Container | 1008/2560PCS Pallets |
| Environmental Temperature | |
| Working Temperature (℃)： | -40～60 |
| Storage Temperature (℃)： | 0～45 |
Installing Parameter： | |
| Diameter of Pole： | Ø60mm |
| Screw Fixation： | 209 |
| Wind resistance level(km/h)： | 6-7 |
| Installation Height (m)： | 18-21 |
| Installation Distance（m)： | 147 |
Appearance dimension drawing
Light distribution curve
Packaging
Note：Container dimension is as below ：
20 Feet Container：5890×2342×2388mm，Entrance Height is 2280mm；
40HQ：12017×2342×2693mm，Entrance Height is 2580mm.
Recommended pole drawing（8m）
60W Illumination simulation-8m
